Colored Asphalt , or colorless asphalt, or muticolour colored asphalt colorless binder, is a new type of material among many road construction materials. There are currently two widely used types:
1) One method is to add color powder to a decolorized colorless asphalt and then get colored asphalt mixture material. Decolorized colorless asphalt can be obtained through bitumen, asphalt decolorization, or it can also be synthetic prepared from light colored polymers such as petroleum resins.
2) Another is obtained through direct technical modification of the original bitumen, asphalt. This asphalt also said environmentally friendly asphalt, the colorless asphalt has the characteristics of strong aging resistance of asphalt, and it pavement red color is wine red, brownish red in deep shade.
Colored Asphalt Pavement Technology : Cold laid colored pavement and Hot mixed asphalt HMA colored pavement.

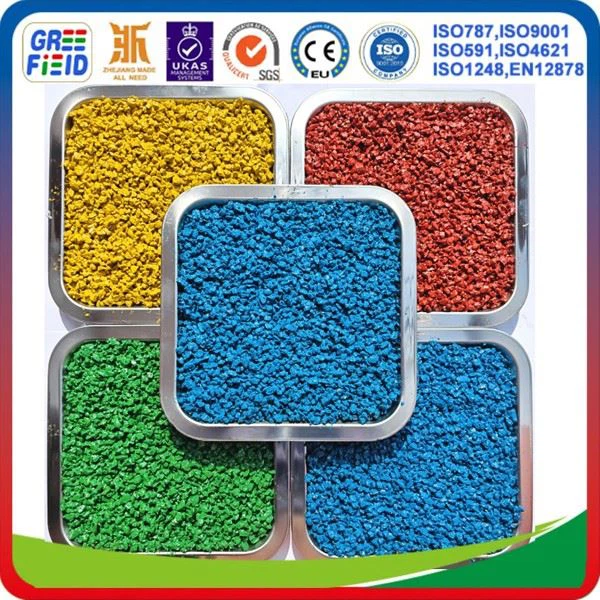

The Typical Colored Asphalt Pavement is a colored asphalt mixture composed of decolorized asphalt as the binder, various colour asphalt pigments added, and various levels of stone ( aggregate ) mixed at the asphalt mixing station to form a colored asphalt pavement. After hot paving and hot rolling and then it is formed smoothly.
Coloured Asphalt Materials Productive Process by GREEFIELD®
Colored Asphalt can be mixed and mixed with various color specifications of stone aggregates, pigments, additives, and other materials at specific temperatures according to different formulas, and can be configured into various colored asphalt mixtures with bright colors, chemical properties, stability, and other characteristics, which can play a role in water drainage, anti slip, anti rutting, and beautification of the city.
The Main characteristics are that the colored asphalt pavement has a certain structural thickness (surface layer of 3.0-4.0 cm), which can replace the traditional asphalt surface layer. It has the same usage function as traditional conventional asphalt pavement, with an actual service life of more than 8 years, and is suitable for large-scale construction.
Green , Blue Coloured Asphalt Pavement Case by GREEFIELD®
However, due to the fact that the asphalt mixture is a hot mix material, it requires the cooperation of a local asphalt mixing plant, and specialized construction machinery (usually asphalt pavers and rollers) and a professional construction team to complete the construction. The professional technical content is relatively high, and the actual professional process control is slightly more complex than the traditional black concrete asphalt pavement.

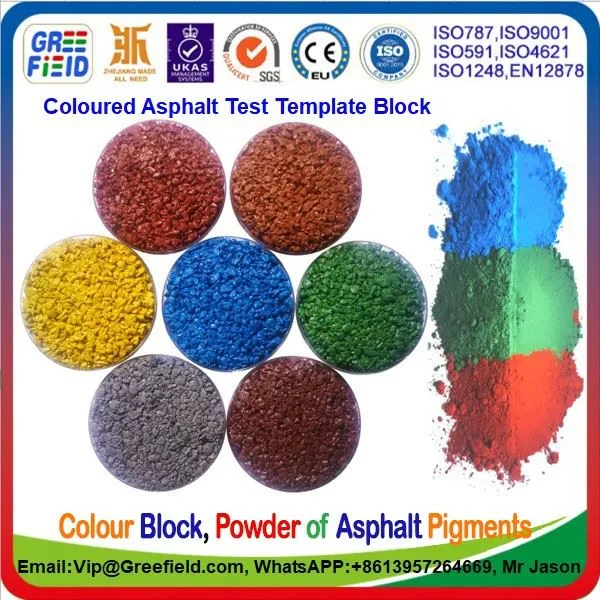

At present, our GREEFIELD factory has developed several mature color series of pigment products for asphalt materials, including red series, green series, blue series, yellow series, purple series, etc. At the same time, we can also customize colors according to customer requirements. Colored asphalt is commonly used for the paving of landscape roads and leisure areas, and is suitable for various slow driving systems, such as greenways, bicycle lanes, sidewalks, and runways, etc.
Application Areas/Fileds:
*Highways and Heavy Traffic Roads : With its combination of colors and surface textures, GREEFIELD® Pigment hot mix color asphalt can be used to effectively delineate high profile locations such as bus lanes,cycles and heavy traffic roads.
*Public Parks and Gardens : For rural or environmentally sensitive off-highwayschemes GREEFIELD® Pigment's color and smoothness is the natural choice for architects and planners alike.
*Sports and Leisure : For sports stadiums, football pitches, golf courses, leisure centers, playgrounds and other sports surfaces.
*Residential : Suitable for colored driveways,colored roadscolored footpaths and colored car parking areas. GREEFIELD® Pigments are a durable colored alternative to traditional is a direct alternative for block paving systems.
*Public Bus Lane : For bus lane, BRT road etc heavy traffic road, hot mix color asphalt is the first choice by construction companies, not only to distinguish the color area easily, but also increase the city beauty.
*Footpath/Bicycle Path : Hot mix color asphalt is also suitable for light traffic road such as footpath, bicycle path etc.
Advantages of Colored Asphalt :
*Colored Asphalt Technology: cold laid colored pavement, hot mixed colored pavement.
*Fast construction cycle: Medium dry construction is fast, efficient, and effectively reduces traffic delays caused by construction.
*Good visual perception: The colored road surface effectively improves the brightness of road colors and greatly improves the visual effect of the road surface.
*Good anti slip performance of apron: Colored asphalt pavement with water dispersion and good anti slip performance can effectively reduce braking distance and improve driving safety.
*Good noise reduction effect: The fine aggregate structure has the effect of transmitting audio, and can reduce noise by 3-4 decibels when used on cement pavement.

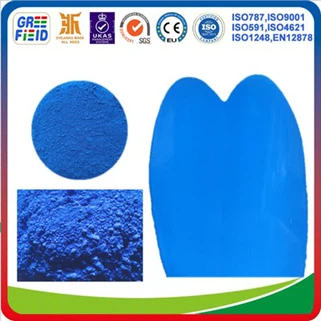

Pigment Blue General Description:
Our GREEFIELD® high performance synthetic iron oxide pigments have the complete colour range of synthetic Iron Oxide Red, synthetic Oxide Yellow, synthetic Oxide Black, synthetic Oxide Orange, synthetic Oxide Brown and Compound Ferric Green, Compound Ferric Blue which have excellent colour consistancy and dispersibility, and strong tinting strength, and also can be used in the many fields, like the colorant in paint and coating industry, constructions industry, colour asphalt bitumen, ceramic industry, plastic and rubber industry, paper industry, float glass industry and mulch colorant, that application used indoor and outdoor condition etc.
Advantages:
1). Bright-colored exquisite powder;
2). Good weatherability; Lightfastness, heat-resistant and alkali resistant;
3). Strong tinting power, excellent covering ability and fine dispersion;
4). We can supply iron oxide with different color, specifications and packing base on client's request.
Mainly Application:
1). Constructions: colorant for asphalt and concrete, beton, terrazzo, masonry block, bricks, paving slabs, brick paver, architectural, ready-mix concrete, roof tiles, sand-lime bricks, walling blocks and bitumen, etc;
2). Paint and coating: water-based exterior and interior wall coating,oil paint primer and finish paints, alkyd resin paints and anticorrosion paints etc;
3). Plastic and rubber: colorant for wooden plastic composite, PVC, thermosetting plastic and thermoplastic and rubber track etc;
4). Others: potash fertilizer, phosphoric fertilizer, organic fertilizer colorant, paper, leather, ceramics, float glass, cosmetic and medicine etc.
Material Technical Data Sheet for Compound Ferric Blue Asphalt Pigment Blue 8260 :
|
Color Value & Tinting Strength |
Unit |
Specification |
Test Method |
|
Mass Tone △EabL |
≤ 1.1 |
ISO787-1 |
|
|
Tint Tone △EabL |
≤ 0.9 |
ISO787-16 |
|
|
Relative tinting strength |
% |
97 ~ 105 |
ISO787-16 |
|
Technical Data |
Unit |
Specification |
Test Method |
|
Fe2O3 Content |
% |
≥ 80.0 |
ISO1248 |
|
Matter Volatile at 105℃ |
% |
≤ 1.5 |
ISO787-2 |
|
Water Soluble Salts |
% |
≤ 2.5 |
ISO787-3 |
|
Residue on 45μm Mesh |
% |
≤ 0.3 |
ISO787-7 |
|
PH Value |
6.0 ~ 8.5 |
ISO787-9 |
|
|
Oil Absorption |
g/100g |
25 ~ 35 |
ISO787-5 |
|
Density |
g/cm3 |
4.90 |
ISO787-10 |
|
Tamped Density |
g/cm3 |
0.96 |
ISO787-11 |
|
Predominant Particle Size |
μm |
Irregular |
Electron Micrographs |
|
Particle Shape |
Irregular |
Electron Micrographs |
|
|
Standard Package |
Net 25kg/bag in EVA & PE Hot melt bag, Repackage 40bags/1000kgs or 44bags/1100kgs into container-bag base on standard fine palletized safety for FCL container transport. |
||
|
Transportation and Storage |
Protect against weathering. Store in a dry place and avoid extreme fluctuations in temperature. Special conditions for opened packaging: Close bags after use to prevent the absorption of moisture and contamination. |
||
|
Safety |
The product is not classified as hazardous under EC 1907/2006 & EC 1272/2008. |
||
Classic Colour Asphalt Pavement Hot Mixed Material Formulation Sheet :
|
EUVAN® Colorless Asphalt Type |
Synthetic Decolorized Asphalt SBL70 |

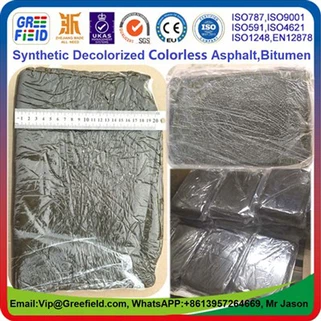

Synthetic Decolorized Asphalt SAL60 |
Synthetic Decolorized Asphalt SAH70 |
Synthetic Decolorized Asphalt SAH130 |
|
|
Applicable Road Surface Pavement |
Sport Bicycle Lane, Non Motor Vehicle Lane |
Medium and Light Traffic Lanes |
Heavy-duty Traffic Lane |
<-40 ℃ in Cold Regions |
|
|
Asphalt Pigment Type |
Base on 1000Kgs Aggregate Stone Materials for Hot Mixed Prepared |
||||
|

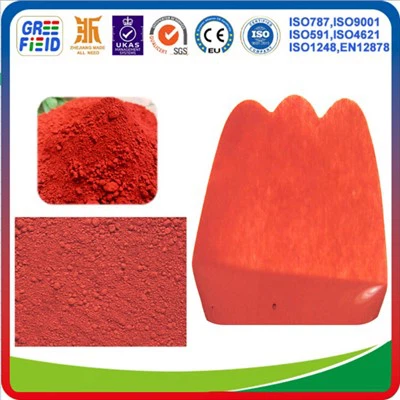

GREEFIELD® Asphalt Pigment Red Type: 4110, 5120, S130, 5130, 6130 |
+ 50kgs ~52kgs Colorless Asphalt SBL70; + 25Kgs ~ 30Kgs Pigment Red 4110 , 5120. |
+ 50kgs ~52kgs Colorless Asphalt SAL60; + 25Kgs ~30Kgs Pigment Red 5120 , S130. |
+ 50kgs ~55kgs Colorless Asphalt SAH70; + 25Kgs ~30Kgs Pigment Red 5130 , 6130. |
+ 50kgs ~55kgs Colorless Asphalt SAH130; + 25Kgs ~30Kgs Pigment Red 5130 , 6130. |
|
|
GREEFIELD® |
------- |
+ 50kgs ~52kgs Decarbonized Black Asphalt ; + 50Kgs ~ 55Kgs Pigment Red 5120 , S130 |
+ 50kgs ~55kgs Decarbonized Black Asphalt ; + 50Kgs ~ 55Kgs Pigment Red 5130 , 6130 |
+ 50kgs ~55kgs Decarbonized Black Asphalt ; + 50Kgs ~ 55Kgs Pigment Red 5130 , 6130 |
|
|
GREEFIELD® |
+ 50kgs ~52kgs Colorless Asphalt SBL70; + 30Kgs ~ 35Kgs Pigment Blue 8103 , 8107 |
+ 50kgs ~52kgs Colorless Asphalt SAL60; + 30Kgs ~ 35Kgs Pigment Blue 8107 , 8160 |
+ 50kgs ~55kgs Colorless Asphalt SAH70; + 30Kgs ~ 35Kgs Pigment Blue 8160 , 8260 |
+ 50kgs ~55kgs Colorless Asphalt SAH130; + 30Kgs ~ 35Kgs Pigment Blue 8160 , 8260 |
|
|

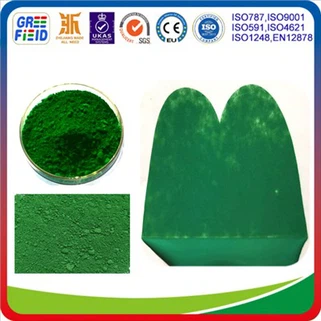

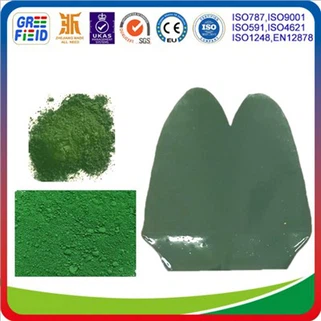

GREEFIELD® Asphalt Pigment Green. Type: 560, GX56, GX66 |
+ 50kgs ~ 52kgs Colorless Asphalt SBL70; + 25Kgs ~ 30Kgs Pigment Green 560, GX56. |
+ 50kgs ~52kgs Colorless Asphalt SAL60; + 25Kgs ~ 30Kgs Pigment Green 560, GX56. |
+ 50kgs ~55kgs Colorless Asphalt SAH70; + 25Kgs ~ 30Kgs Pigment Green GX56, GX66 |
+ 50kgs ~55kgs Colorless Asphalt SAH130; + 25Kgs ~ 30Kgs Pigment Green GX56, GX66 |
|
|
GREEFIELD® Asphalt Pigment Gray. Type: 9360, 9370 |
+ 50kgs ~ 52kgs Colorless Asphalt SBL70; + 25Kgs ~ 30Kgs Pigment Gray 9360, 9370. |
+ 50kgs ~ 52kgs Colorless Asphalt SAL60; + 25Kgs ~ 30Kgs Pigment Gray 9360, 9370. |
------- |
------- |
|
|

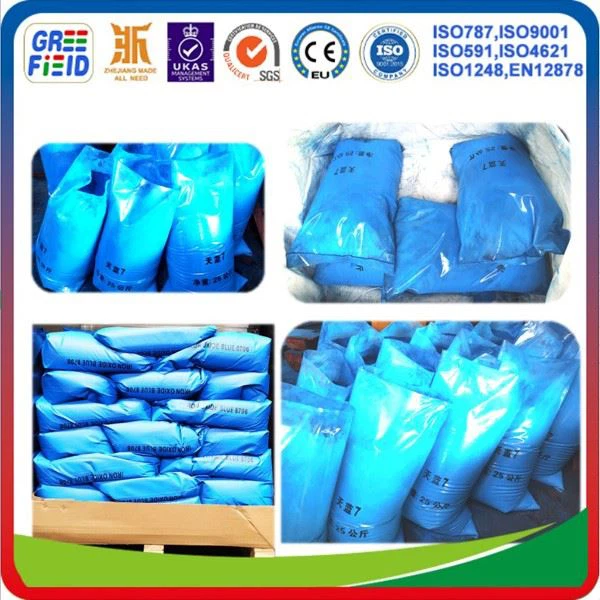

Standard Package for Asphalt Pigments |

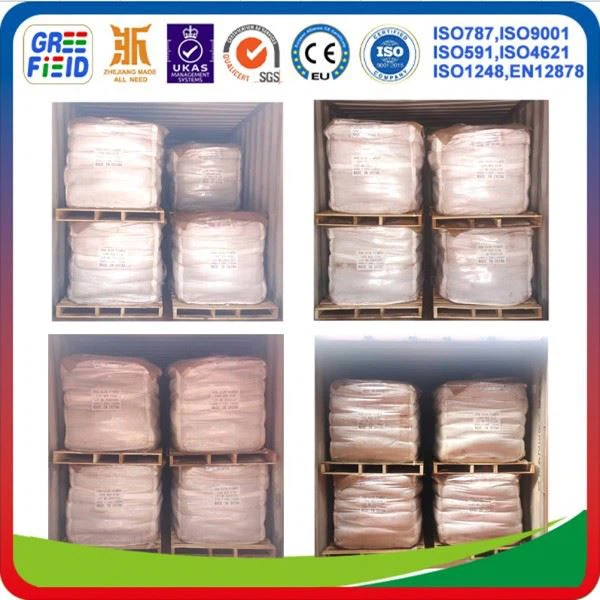

Net 25kg/bag in EVA & PE Hot melt bag, Repackage 40bags/1000kgs or 44bags/1100kgs into container-bag base on standard fine palletized safety for FCL container transport. |
||||
|
Transportation & Storage for Asphalt Pigments |
Protect against weathering. Store in a dry place and avoid extreme fluctuations in temperature. Special conditions for opened packaging: Close bags after use to prevent the absorption of moisture and contamination. |
||||
|
Aggregate Stone Materials Ratio for AC Class Hot MIX Asphalt HMA |
Mesh 0-3mm @ 28% plus 3-5mm @ 40% plus 5-10mm @ 32% |
||||
|
Aggregate Stone Materials Ratio for SMA Class Hot MIX Asphalt HMA |
Mesh 0-5mm @ 40% plus 5-10mm @ 60% |
||||
About the more details on colored asphalt paving technology, also kindly please visit our share page at Colored Asphalt Materials, Research, Technology and Project Pave Construction smoothly and please carefully reading it if possible.
About the more details on colored asphalt pigment, mixtures pavement technology, also kindly please visit our share page at : Colored asphalt pigments, colored asphalt mixtures and colored asphalt pavement cases smoothly and please carefully reading it if possible.
Welcome to consult, exchange, and technical discussions on colored asphalt pigment materials, synthetic decolorized asphalt, design, construction, paving, and project maintenance of colored asphalt engineering.
Welcome to inquiry our more colours Asphalt Pigment by email: Vip@Greefield.com or by WhatsAPP: +86139 5726 4669 smoothly , the TDS request through WhatsAPP .
